TG7600/23 Series
Touch current tester / Leakage current tester
protective conductor current tester
|
● |
 |
| ● TG7600:
TG 7600 Series are accord with IEC60990-1999 measure request: |
| ●
Be can respond below measure value:
|
Real PEAK、real RMS、DC direct current component、AC+DC display output simultaneity
Input resistance: 1MΩ；
Input capacitance not more than 200Pf at the time of do AC measure
Frequency range from 15Hz to 1MHz at the time of do AC measure
Float、differential input common mode rejection greater than 40Db;
Measure range of protectove conductor current with protectove conductor series a 0.5ΩAmperemeter: 0 - 500mA ;
|
|
|
IEC60990（Fig 4U1&U2）IEC60598-1、IEC60950—1
IEC60065、IEC61010
IEC60335-1
GB12113、GB8898
GB4706、 GB4943
|
Lighting devices;
Audio equipment;
video equipment;
Communication devices
|
|
Above （3） measure MD is basic setup；
Under (1)(2)(4)(5)(6)(7)(8)(9) ? measure MD is selection match：
|
|
GB12113、GB8898 |
Lighting devices;
Audio equipment;
video equipment;
Communication devices |
|
IEC60990（Fig 4U1&U2）IEC60598-1、IEC60950—1
IEC60065、IEC61010
IEC60335-1
GB12113、GB8898 |
Lighting devices;
Audio equipment;
video equipment;
Communication devices |
|
IEC60990（Fig 5U1&U3）、
IEC60958-1
GB12113 |
Lighting devices;
Audio equipment;
video equipment;
Communication devices |
|
GB12113、GB8898
GB4706、 GB4943 |
Lighting devices;
Audio equipment;
video equipment;
Communication devices |
|
IEC60601-1 |
Medical instrument;
Medical devices; |
|
| |
Touch panel operate interface: |
|

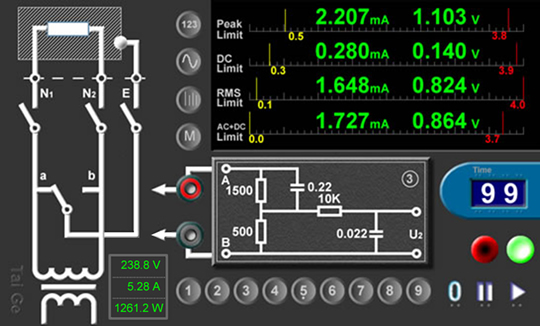

Data display output:DC、Peak、RMS、AC+DC，Upper/lower limit alarm setup，
Voltage Current data display at one time
|
| |
isolation transformer output power/ EUT power supply |
transformer ratio |
1：1.1 |
Output voltage |
100V~300V ±10% |
Output current |
5A（optional）10A、15A、30A |
Frequency |
47Hz~63Hz |
|
V Voltage measure range / Current measure range |
Peak |
-120V ~ +120V |
-140mA ~ +140mA |
DC |
-120V ~ +120V |
-140mA ~ +140mA |
RMS |
0~50V |
0~100mA |
AC+DC |
0~50V |
0~100mA |
resolution |
3.662mV |
0.1μA |
Accuracy |
±2% |
Input Resistance |
1MΩ |
Input capacitance |
30pF |
Frequency range |
0Hz,15Hz~1MHz |
CMRR |
＞40db |
Signal input |
Isolation float measure |
volume： 480mm×460mm ×175mm |
weight： 16Kg |
|
